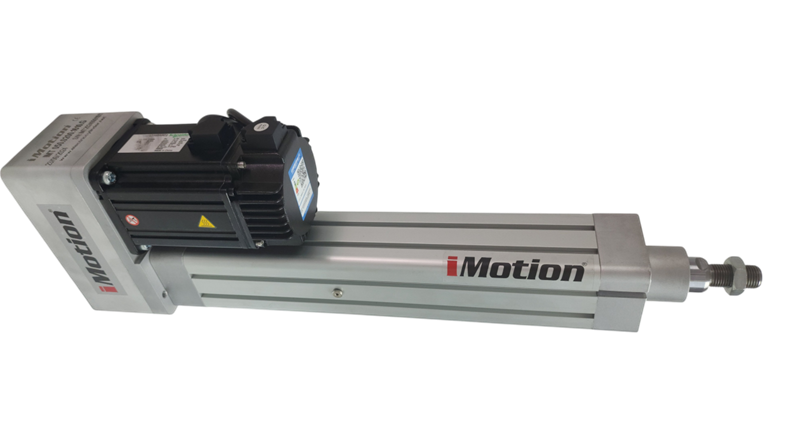

IMT 80 Electric Cylinder / Linear Actuator

IMT electric cylinders are designed for applications requiring linear motion, high-precision positioning, repeatability and controlled speed variation in synchronized systems. The ball screw, driven by an electric motor, moves the piston rod of the ISO 15552-compatible cylinder linearly through the ball nut.

Technical Specifications

IMT80 standard configuration

General Information

Cylinder size	80
Available screw leads	5 / 10 / 25 mm
Standard maximum stroke	1,000 mm
Maximum acceleration	8 m/s²
Repeatability	< 0.03 mm
Protection class	IP54; IP65 optional
Motor mounting	Inline or parallel
Compliance	2006/42/EC Machinery Directive

Performance by Screw Option

Specification	25 × 5	25 × 10	25 × 25
Dynamic load capacity	12,100 N	20,900 N	12,300 N
Static load capacity	22,600 N	37,600 N	37,500 N
Maximum speed*	250 mm/s	500 mm/s	1,250 mm/s
Nominal working force	7,500 N	7,500 N	7,500 N

Key Features

ISO 15552 industrial mounting standard

Precision ball screw drive technology

High positioning accuracy and repeatability

Suitable for easy replacement of pneumatic cylinders

Anti-rotation piston rod

Flexible motor integration

* Maximum speed depends on the selected motor speed and application conditions.

Technical Dimensions

All dimensions are in millimetres.

IMT electric cylinder standard technical dimension drawing

Ball Screw	A	B	C	ØD	ØE	F	G	I	H	M	N	K	O	X	Y	Z
25 × 5	112	36	36	60	40	M20×1.5	40	25	20	94	72	**	M10	**	**	**
25 × 10	144	36	36	60	40	M20×1.5	40	25	20	94	72	**	M10	**	**	**
25 × 25	126	36	36	60	40	M20×1.5	40	25	20	94	72	**	M10	**	**	**

A + stroke determines the cylinder body length. Motor-side dimensions marked ** depend on the selected motor and mounting adapter.
